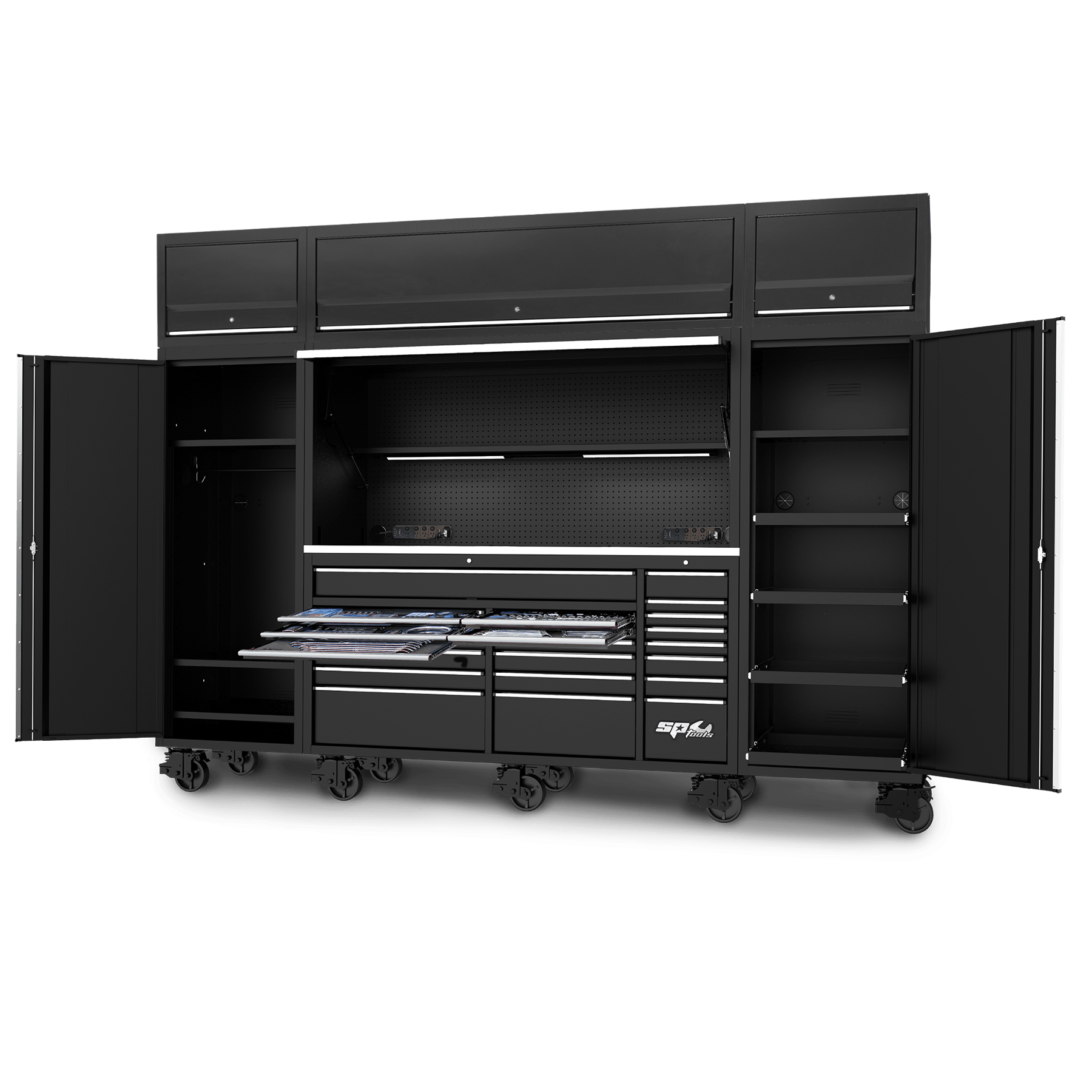

128" USA Sumo Series Complete Workstation Tool Kit - 1216pc - Metric & SAE - Black/Chrome

128" USA Sumo Series Complete Workstation Tool Kit - 1216pc - Metric & SAE - Black/Chrome

$23,099.00
SP50870
In stock
+ −

NEED HELP FINANCING YOUR PURCHASE?

OVER $1000
From $8 per week

UNDER $1000
From $10 per week
Add to wish list

TOOLS INCLUDED IN THIS TOOL KIT

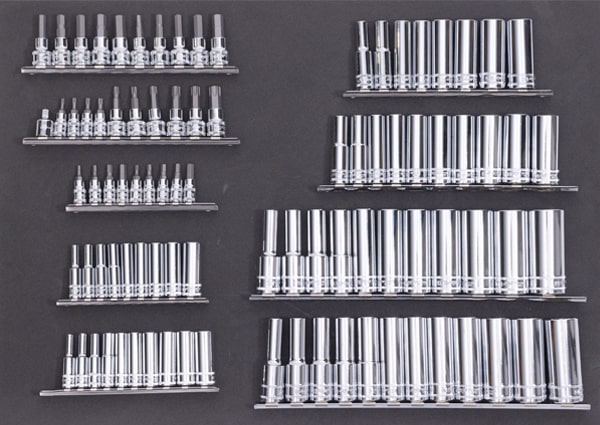

1/4”Dr SOCKETS & ACCESSORIES

  • 12pt - 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 & 14mm
  • 12pt - 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16 & 1/2”
  • Deep 6pt - 4, 5, 6, 7, 8, 9, 10, 11, 12 & 13mm
  • Deep 6pt - 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16 & 1/2”
  • Torx - T10, T15, T20 & T25
  • Inhex - 3, 4, 5 & 6mm, 1/8, 5/32, 3/16, 7/32 & 1/4”
  • 45T Ratchet & Flex Handle
  • Wobble Extension Bars - 50 & 150mm

3/8”Dr SOCKETS & ACCESSORIES

  • 12pt - 8, 10, 11, 12, 13, 14, 15, 16, 17, 18 & 19mm
  • 12pt - 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16 & 3/4”
  • Deep 12pt - 10, 11, 12, 13, 14, 15, 16, 17, 18 & 19mm
  • Deep 12pt - 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16 & 3/4”
  • Torx - T27, T30, T40, T45, T50 & T55
  • E-Torx - E4, E5, E6, E7, E8, E10, E11, E12, E14, E16, E18 & E20
  • Inhex - 6, 7, 8, 9 & 10mm, 3/16, 7/32, 1/4, 5/16 & 3/8”
  • Inhex 100mm long- 6, 7, 8, 9 & 10mm, 3/16, 7/32, 1/4, 5/16 & 3/8”
  • Spline 100mm long - 4, 5, 6, 7, 8, 9 & 10mm
  • Spark Plug Sockets - 5/8 & 13/16”
  • 45T Ratchet & Flex Handle
  • Wobble Extension Bars - 75 & 150mm
  • Adaptors - 3/8Fx1/4M (x2) & 3/8Fx1/2M

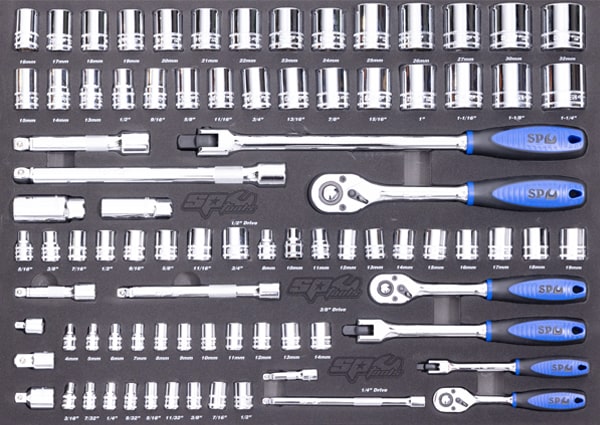

1/2”Dr SOCKETS & ACCESSORIES

  • 12pt - 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 30 & 32mm
  • 12pt - 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1-1/16, 1-1/8 & 1-1/4”
  • Deep 12pt - 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 22 & 24mm
  • Deep 12pt - 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16 & 1”
  • 45T Ratchet & Flex Handle
  • Wobble Extension Bars - 125 & 250mm
  • Adaptor - 1/2Fx3/8M
  • Impact 6pt - 10, 11, 12, 13, 14, 15, 17, 18, 19, 21, 22 & 24mm
  • Impact 6pt Deep - 10, 11, 12, 13, 14, 15, 17, 18, 19, 21, 22 & 24mm
  • Impact Inhex - 4, 5, 6, 7, 8, 10, 12, 14 & 17mm
  • Impact Inhex - 3/16, 7/32, 1/4, 5/16, 3/8, 7/16, 1/2 & 9/16”
  • Impact Torx - T25, T27, T30, T40, T45, T50, T55, T60 & T70
  • Impact Universal Joint
  • Impact Extension Bars - 75 & 125mm
  • Impact Adaptor - 3/8”Fx1/2”M

SPANNERS

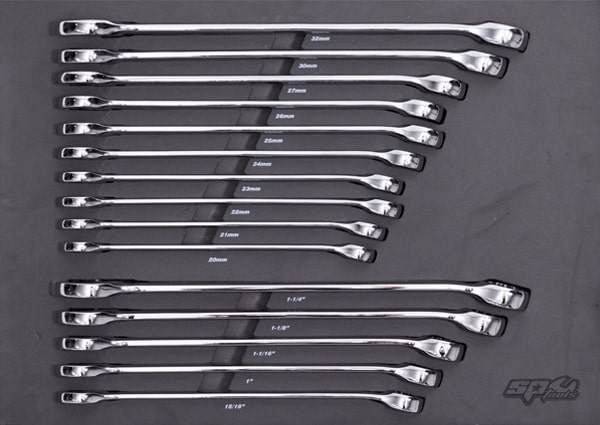

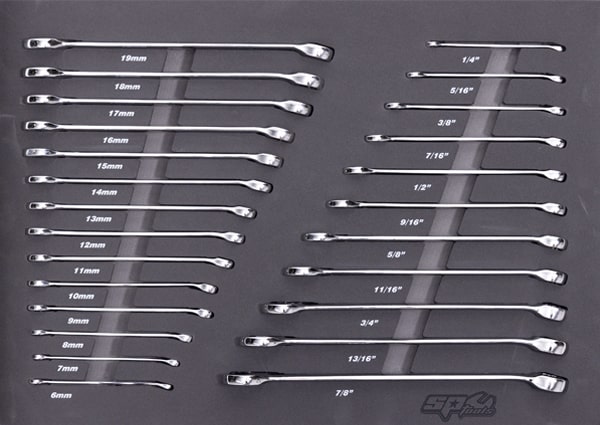

  • Quad Drive Combination Spanners - 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 30 & 32mm
  • Quad Drive Combination Spanners - 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1-1/16, 1-1/8 & 1-1/4”
  • Stubby Quad Drive Combination Spanners - 10, 11, 12, 13, 14, 15, 16, 17, 18 & 19mm
  • Stubby Quad Drive Combination Spanners - 3/8, 7/16, 1/2, 9/16, 5/8, 11/16 & 3/4”
  • Gear Drive ROE Quad Drive - 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18 & 19mm
  • Gear Drive ROE Quad Drive - 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16 & 3/4”

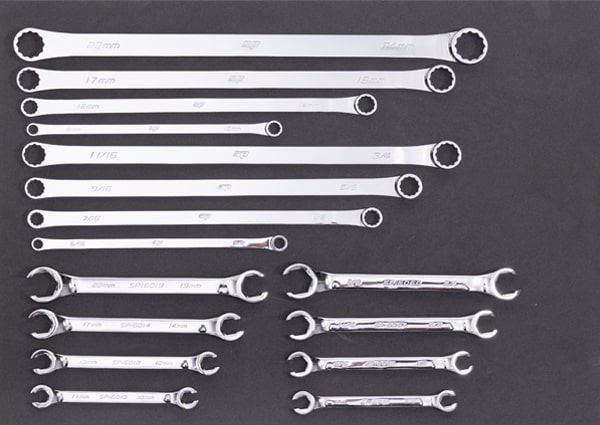

  • Flare Nut Spanners - 10x11, 12x13, 14x17 & 19x22mm
  • Flare Nut Spanners - 3/8x7/16, 1/2x9/16, 5/8x11/16 & 3/4x7/8”
  • Double Ring Spanners - 8x10, 12x14, 17x19 & 22x24mm
  • Double Ring Spanners - 3/8x5/16, 1/2x7/16, 5/8x9/16 & 3/4x11/16”
  • E-Torx Spanners - E6xE8, E10xE12, E14xE16 & E18xE20
  • Finger Tip Ratchet - Low Profile - 10 & 13mm
  • Finger Tip Ratchet Adaptors - 1/4”x10mm, 3/8”x13mm & 10mmx1/4” Hex)

TOOLS

  • 1/2” & 3/8”Dr Socket Set in X-Case - 42pc
  • Screwdrivers - 3.0x75, 5.5x100, 6.5x38, 6.5x100, 6.5x150 & 8.0x150mm
  • Screwdrivers - #0x75, #1x75, #2x38, #2x100, #2x150 & #3x150mm
  • Screwdrivers - T8, T10, T15, T20, T25, T27, T30 & T40
  • Precision Screwdrivers - 2.0x50, 2.5x50, 3.0x50, #0x50, #00x50 & #000x50mm
  • Technicians Bit Set - 71pc
  • Professional Bit Set - 60pc
  • Professional Bit Set - 37pc
  • Ratchet Driver Bit Set - 31pc
  • Ratchet Socket Bit Set - 25pc
  • Impact Screwdriver Set - 13pc
  • Hex Keys - 1.5, 2, 2.5, 3, 4, 5, 6, 8 & 10mm
  • Hex Keys - 1/16, 5/64, 3/32, 1/8, 5/32, 3/16, 1/4, 5/16 & 3/8”
  • Torx Keys - T10, T15, T20, T25, T27, T30, T40, T45 & T50

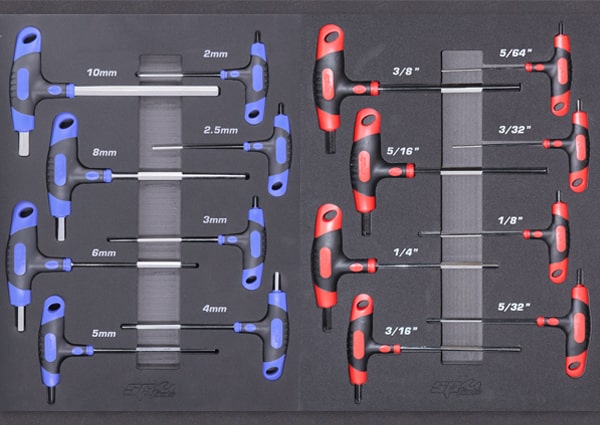

  • T-Handle Hex Keys - 2, 2.5, 3, 4, 5, 6, 8 & 10mm
  • T-Handle Hex Keys - 5/64”, 3/32”, 1/8”, 5/32”, 3/16”, 1/4”, 5/16” & 3/8”

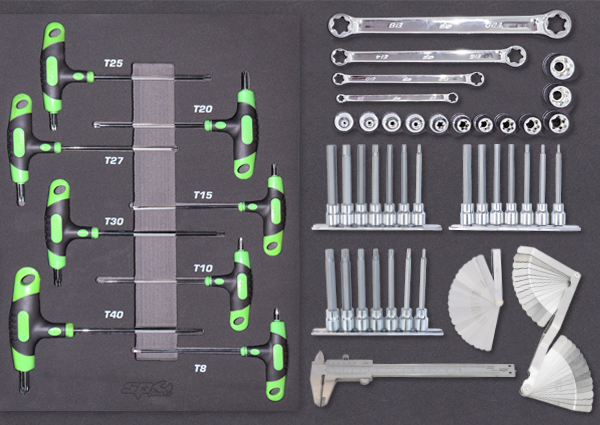

  • T-Handle Torx Keys - T8, T10, T15, T20, T25, T30, T40 & T50
  • Hex Keys Stubby - 1.5, 2, 2.5, 3, 4, 5, 6, 8 & 10mm
  • Hex Keys Stubby - 1/16, 5/64, 3/32, 1/8, 5/32, 3/16, 1/4, 5/16 & 3/8”
  • Torx Keys Stubby - T10, T15, T20, T25, T27, T30, T40, T45 & T50

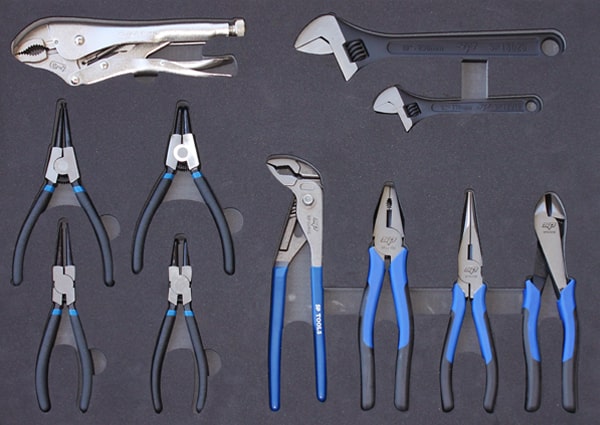

  • Pliers - Combination, Long Nose, Multigrip (x3) & Locking
  • Circlip Pliers Set - 4pc
  • Cutters - Diagonal - 2pc
  • Adjustable Wrenches - 3pc

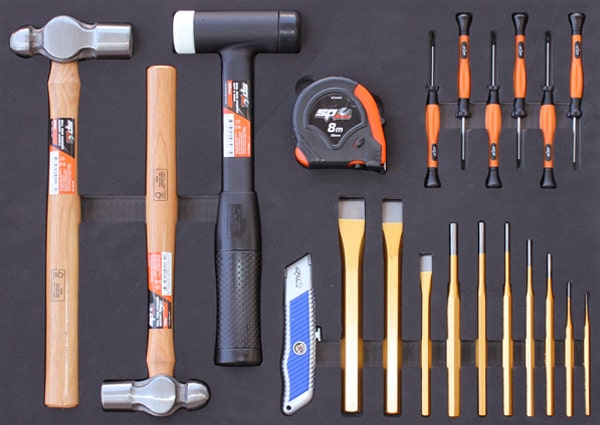

  • Hammers - Ball Pein 16oz & 24oz, Dead Blow, Soft/Hard Head - 40mm
  • Pin Punch & Chisel Set - 10pc

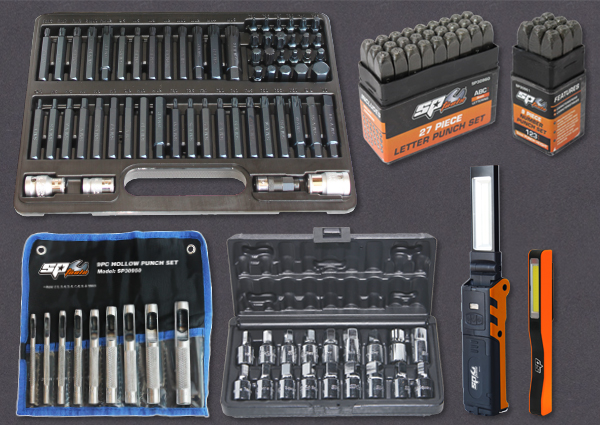

  • Hollow Punch Set - 9pc
  • Letter Punch Set - 27pc
  • Number Punch Set - 9pc

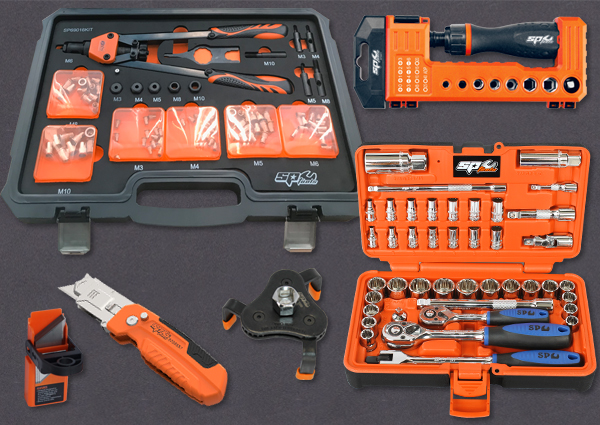

  • Nut Rieter Set - 74pc
  • Automotive Rethreading Kit - 42pc
  • HSS Drill Bit Set - 25pc

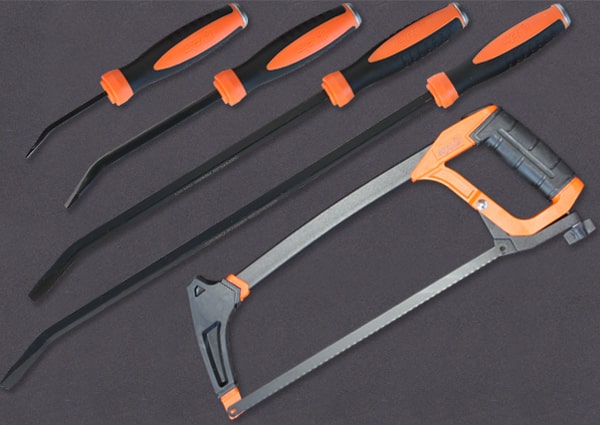

  • Pry Bar Set - Go-Through - 4pc
  • Screw Extractor Set - 5pc
  • Screw Extractor Set - Drill Bit and Guide - 25pc
  • Tap & Die Set - 32pc

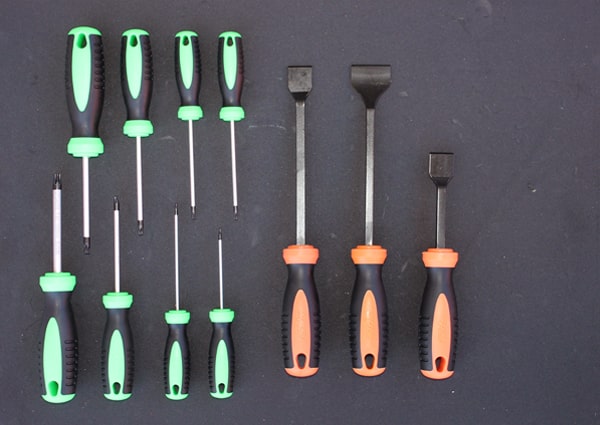

  • Gasket Scraper Set - 3pc
  • Thread Files - 2pc
  • Feeler Gauge Set - Double Sided - 26pc
  • Feller Gauge Set - Type A - 26pc

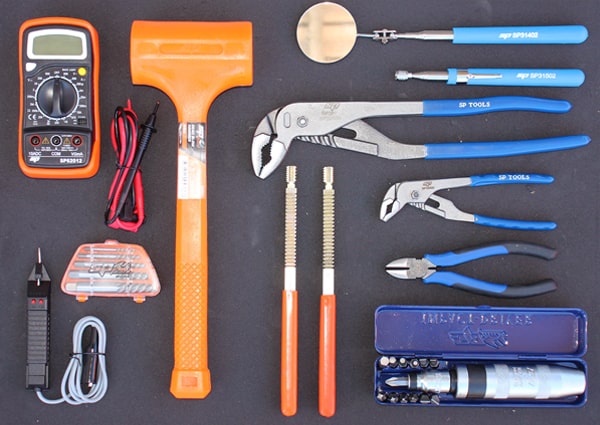

  • Electrical Digital Multimeter
  • Circuit Tester

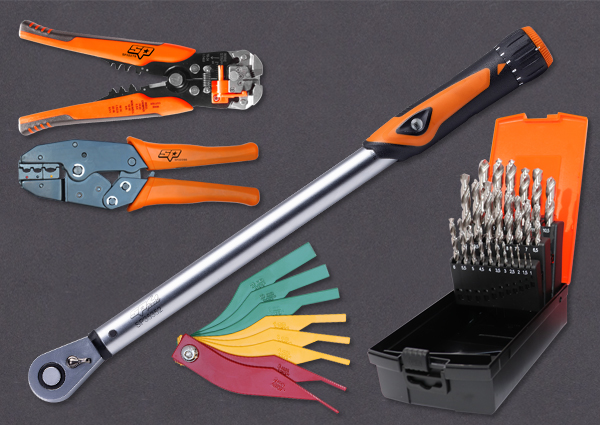

  • 1/2”Dr Micrometer Torque Wrench - 40 to 200Nm
  • Vernier Calipers
  • COB LED Work Light - 270° Dual Fold Slimline
  • Torch/Work Light LED Pen

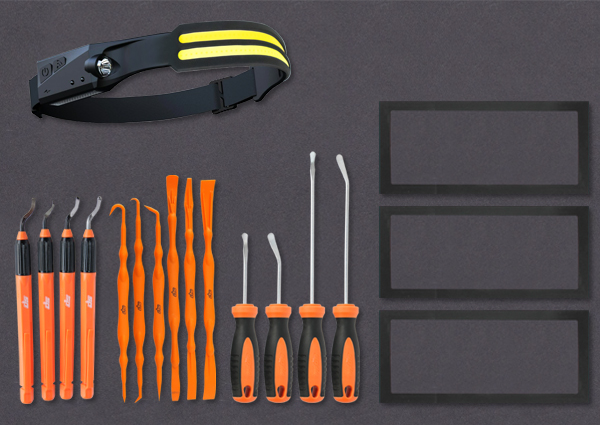

  • Double Strip COB LED Headlamp - Slimline
  • Automatic Wire Strippers
  • Ratchet Crimper - 0.5 to 6mm
  • Oil Filter Wrench
  • Oil Drain Plug Set - 18pc
  • Brake Gauge Set - 8pc
  • O-Ring Remover Set - 4pc
  • Precision Trim & Seal Kit
  • Deburring Tool Set
  • Tweezers Set - 4pc
  • Wire Brush Set - 3pc
  • Pick Set - 4pc
  • Magnetic Pick-up Tool
  • Inspection Mirror
  • Tape Measure
  • Hacksaw
  • Knife
  • Utility Knife - 90° Rotatable Blabe
  • Utilty Knife Replacement Blades

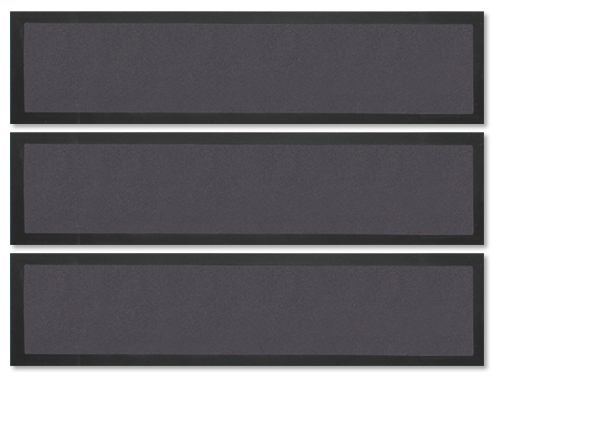

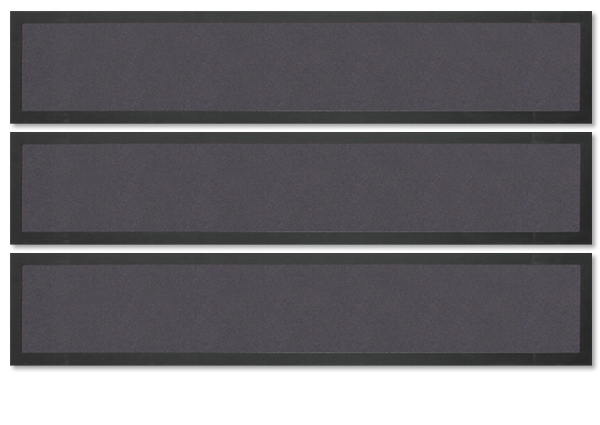

  • 3x EVA Foam Parts Trays - Small
  • 3x EVA Foam Parts Trays - Medium
  • 3x EVA Foam Parts Trays - Large
  • USA Sumo Series 73" Power Hutch
  • USA Sumo Series 73" Roller Cabinet - 21 Drawer
  • USA Sumo Series 27" Side Cabinet - 4 Roller Shelves + 1 Fixed Shelf
  • USA Sumo Series 27" Side Cabinet - 3 Fixed Shelves + Clothes Hang Rail
  • USA Sumo Series 73" Overhead Hutch Cabinet
  • 2x USA Sumo Series 27" Overhead Hutch Cabinet
  • 2x Magnetic Mount Power Boards

CONTENTS GUIDE

*Images are for illustration purposes only, contents may vary

NEW FEATURES ACROSS THE USA SUMO SERIES RANGE

  • DOUBLE WALL SUPER DUTY CONSTRUCTION – all USA Sumo Series boxes use 1.5mm (14.5ga) steel construction as standard. That’s more steel than like for like competitors
  • EXTRA HEIGHT – technicians seem to be getting taller every generation. SP Tools has stepped it up and increased the head clearance height on our USA Sumo Series Hutches. We have set the new clearance at 1855mm (6’1”).
  • ON-BOARD POWER – charge and store all your cordless tools, lighting, and diagnostic equipment. SP Tools has created a unique on-board magnetic attachment system so you can move and use your power where ever you need.
  • SUPER DUTY CASTERS – all USA Sumo Series storage system use the unique spring-loaded super duty caster. Each caster is capable of supporting 400kg.
  • SP MAX BBS DRAWER SLIDES – the drawer slides in the new USA Sumo series have lifted us to a new level of capacity over and above our existing BBS. They are rated at 60Kg per drawer and 120kg per drawer on the wider and deeper drawers
  • SP ONE-TOUCH CLIKLOK – the new drawer retention system has an easy one touch single handed release and open function. The perfect combination to keep the drawers securely closed, but easy to open
  • UV POWDER COATING – the USA Sumo Series uses the latest technology in Ultraviolet (UV) powder coating. We have combined the advantages of thermosetting powder coatings with those of liquid ultraviolet cure coating technologies.

73" USA Sumo Series Power Top Hutch
Shelf/Light/Power Board

  • Heavy duty steel wall construction
  • Includes 2x magnetic mount power boards, each with 4 power outlets and 2 USB ports, ideal for power tools, chargers, etc
  • 2 Power board cable access ports
  • Steel pegboard rear wall to organise frequently used tools
  • 2 Built-in 600mm LED lights
  • Fixed full length shelf
  • Dual gas strut security panel stays
  • Security panel folds away into hutch Internal locking system for extra security

73" USA Sumo Series Roller Cabinet
21 Drawer

  • Heavy duty steel wall construction
  • Stainless steel work top
  • Extra long deep top drawer
  • Triple drawer bank
  • Soft Close drawers with heavy duty full extension ball bearing drawer slides
  • SP Cliklok drawer locking system ensures drawers stay closed and secure Internal locking system for extra security
  • Extreme duty spring castors - 2x lockable swivel
  • Top drawer load weight: 120Kg
  • Standard drawer load weight: 60Kg
  • Bottom drawers load weight: 120Kg

27" USA Sumo Series Side Cabinet
3 Fixed Shelves/Clothes Hang Rail

  • Reversible castors and doors - Side cabinet can be used on either side of the hutch and roller cabinet combo
  • Heavy duty steel wall construction
  • Built-in power board cable access ports
  • Internal locking system for extra security
  • 2x extreme duty castors
  • UV powder coating resists scratching
  • Large volume closet compartment with clothes hang rail
  • 3x fixed shelves

27" USA Sumo Series Side Cabinet
4 Roller Shelves/1 Fixed Shelf

  • Reversible castors and doors - Side cabinet can be used on either side of the hutch and roller cabinet combo
  • Heavy duty steel wall construction
  • Built-in power board cable access ports
  • Internal locking system for extra security
  • 2x extreme duty castors
  • UV powder coating resists scratching
  • 4x high volume, fully extendable roller shelves. Each with a massive 60kg load rating
  • 1x fixed shelf

MAGNETIC MOUNT POWER BOARD

Unique to SP Tools

Position your power boards anywhere on your tool kit.

All USA Sumo Series roll cabs, top hutches and side cabinets include several built-in cable access points, strategically positioned to allow you to power or charge your tools and USB Powered devices as conveniently as possible. Each power board includes 4 individually switched surge protected power outlets and 4 USB ports.

128" TOOL KIT COMBINED DIMENSIONS:

3250w x 622d x 1752h (1954h with castors)
(6'1" Head Clearance)

73" USA Sumo Series Power Top Hutch

1850w x 622d x 864h (mm)

73" USA Sumo Series 21 Drawer Roller Cabinet

1850w x 622d x 888h (1954h with castors)(mm)

  • 1x Drawer: 1367w x 575d x 115h
  • 3x Drawers: 736w x 575d x 45h
  • 2x Drawer: 736w x 575d x 73h
  • 1x Drawer: 736w x 575d x 240h
  • 3x Drawers: 566w x 575d x 45h
  • 2x Drawer: 566w x 575d x 73h
  • 1x Drawer: 566w x 575d x 240h
  • 1x Drawer: 301w x 575d x 100h
  • 4x Drawers: 301w x 575d x 45h
  • 2x Drawers: 301w x 575d x 73h
  • 1x Drawer: 301w x 575d x 240h

27" USA Sumo Series Side Cabinet

700w x 622d x 1954h (mm)

27" USA Sumo Series Side Cabinet

700w x 622d x 1954h (mm)

SP Hand Tools - Lifetime Warranty
SP Hand Tools are covered against manufacturing defects or faulty materials. This warranty does not cover overloading, abuse, misuse and/or normal wear and tear. All SP Hand Tools are designed and manufactured for specific purposes and if not used for that intended purpose they will not be covered by the lifetime warranty. This lifetime warranty is in addition to what is covered in the Trade Practices Act (Aust), all state and territory laws and regulations and the Fair Trading Act (NZ). Tools that fail due to manufacturing defects or faults may be returned to a SP Hand Tool authorised dealer for repair or replacement at the sole discretion of Austech Industries Pty Ltd. Exemptions - All measuring equipment (12 month warranty), battery operated wrenches (24 month warranty), striking and cutting tools, batteries (6 month warranty).

SP Tool Box - 12 Month Warranty
SP Tool Boxes are covered against manufacturing defects or faulty materials. This warranty does not cover
overloading, abuse, misuse and/or normal wear and tear. Tool chests are designed for use in a workshop situation. The warranty does not cover the use of chests in a mobile situation with the exemption of our mobile solutions storage. This warranty is in addition to what is covered in the Trade Practices Act (Aust), all state and territory laws and regulations and the Fair Trading Act (NZ). All warranty claims must be returned to an authorised SP dealer, freight pre-paid and packed to avoid transportation damage. If the claim is rejected, the product will be returned to the customer at their expense.
